QUALITY

Evaluations, validations, verifications and certification

QUALITY SYSTEMS

INDUSTRIAS CAZEL


Industrias Cazel has laboratories for dimensional evaluation that have measurement equipment to complete initial evaluations, annual validations, engineering change verifications and certification of inspection devices.

The measurement equipment includes .CMM machines.

We have the capacity to test the following:

· Color harmony chamber.
· Spectrophotometer 45°.
· Validation of color harmony.
· Delivery of first – last piece.
· Process approval.
· Audit program 1st, 2nd and 3rd Part.
· Dock Audit.

INDUSTRIAS CAZEL LABORATORIES

LABORATORIES
AND EQUIPMENT



DIMENSIONAL LABORATORY


It has measurement equipment to complete the following:
• Initial evaluations.
• Annual validations.
• Engineering change verification.
• Certification of inspection devices.
Within the measurement equipment, we have a machine that measures coordinates (CMM) by Zeiss, with a useful area of 1,000 mm. by 1,000 mm. by 700 mm., automatic and with a software that can work with mathematic models.


We also have a machine that measures coordinates (CMM) by Poli, with a useful area of 1,300 mm. by 1,000 mm. by 1,000 mm., automatic and with a software that can work with mathematic models.

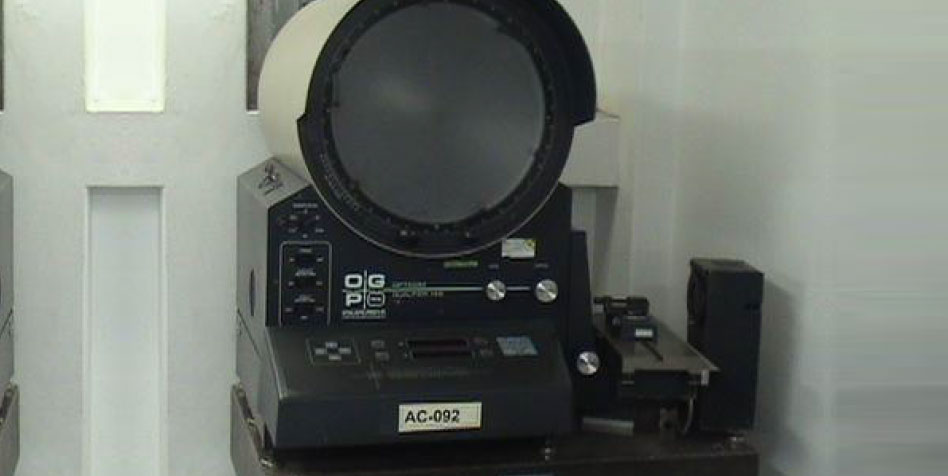

For the measurement of small parts, components and details of the parts, we have an optical comparator or projector for profiles, which is also able to measure the details on the surfaces and has lenses that magnify maximum 20 times.

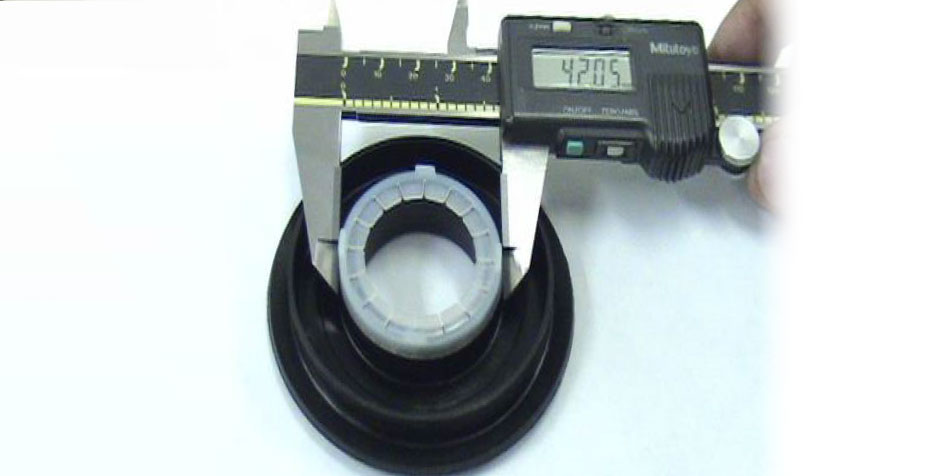

We have pieces of equipment for measurement during the process such as vernier calipers, exterior micrometers and digital indicators.


TEST LABORATORY


It has equipment for the realization of physical tests that are essential requirements for the approval of the production parts. Among them, the determination of color via electronic means.

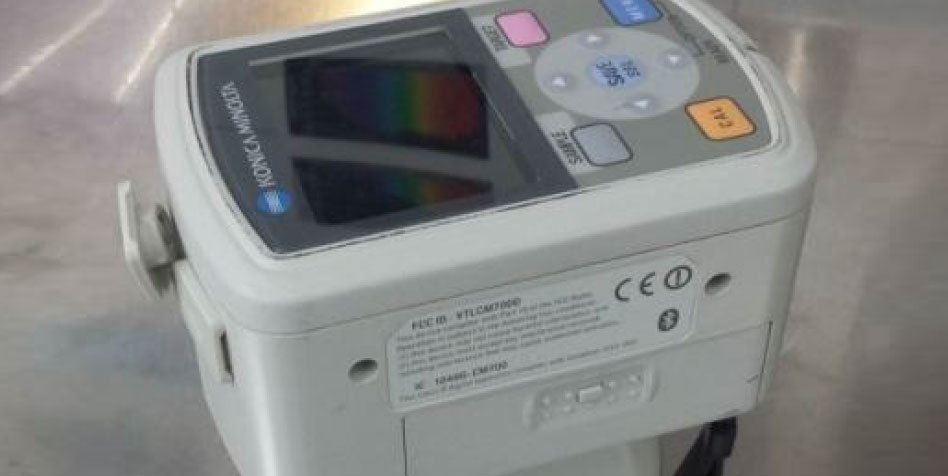

We have two kinds of colorimeters:
45°/0 geometry to comply with the requirements of the VW 501 90 norm.
D/8° geometry to comply with the CS9022 requirement.


In order to determine the shine of the pieces we have a Micro Tri Glos brillometer which complies with the ASTM D523 norm and the CS-9022 requirement.

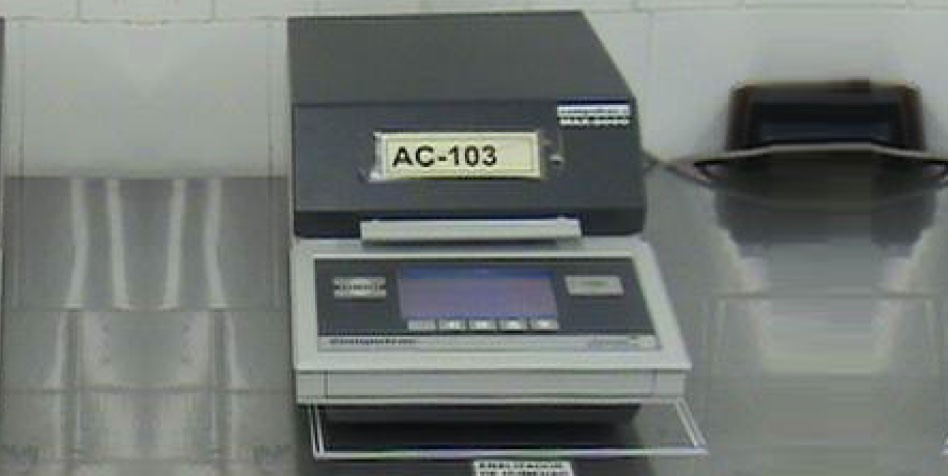

The determination of the humidity in the raw material is fundamental in order to avoid visual faults in the parts we produce. For that, we have a humidity analyzer which complies with the ASTM D 789-98 / D570-98 norms.

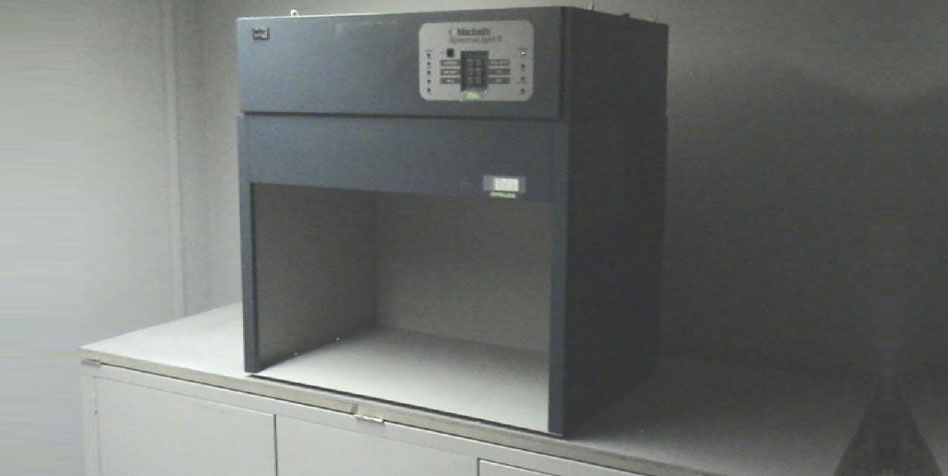

The illumination cabin is useful when we need to verify the shades of the show parts by means of the human perception via various illuminants. It complies with the ASTM D-1729 norm.

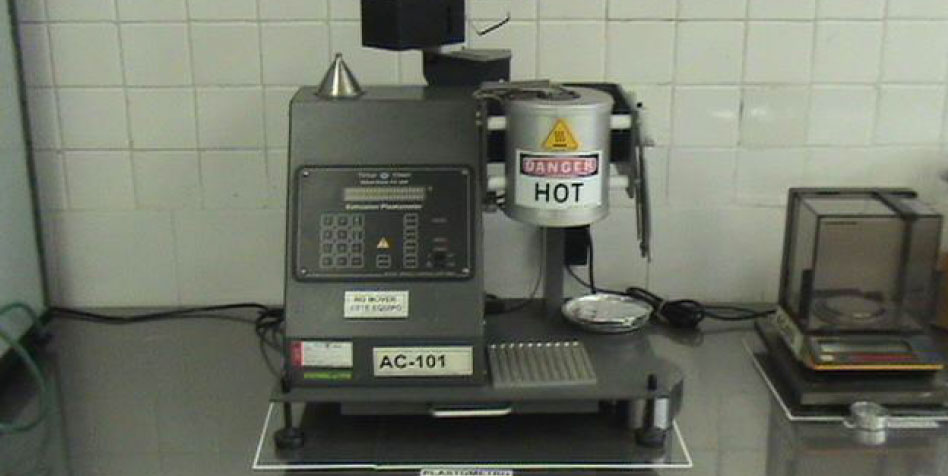

We have an extrusion plastometer and we use it to find out the fluidity index of the raw material. It complies with the ASTM D 1238-00 norm.


Equipment to verify the strength of detachment in some assemblies and/or components.

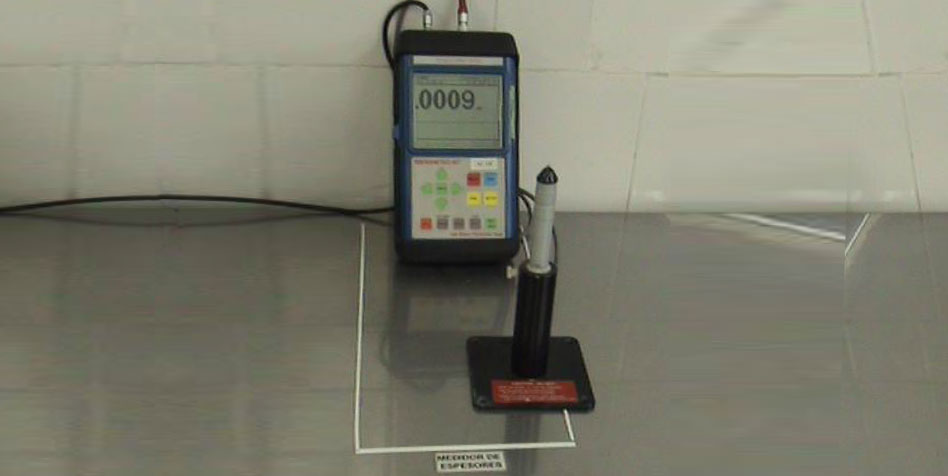

Obtaining wall thickness in the very deep parts or with difficult access for its physical configuration by means of a magnetic wave using the principle of the Hall Effect.


Verification of impact resistance based on the following norms and requirements:
ASTM D 5420-98-A
LP-4630B-14-01
PV 3905 NES M0134


The flammability chamber is used in order to find out the ignition velocity of the interior components. This test is for the security of all of our automotive and sub-providers clients. It complies with the following norms and requirements: FMVSS-302, TL-1010, NES M0094.


Hardness Shore A: ASTM D 2240
Hardness Shore D: DIN 53505
Rockwell B and C: ASTM E-18 / ISO 6508-1 Y 2

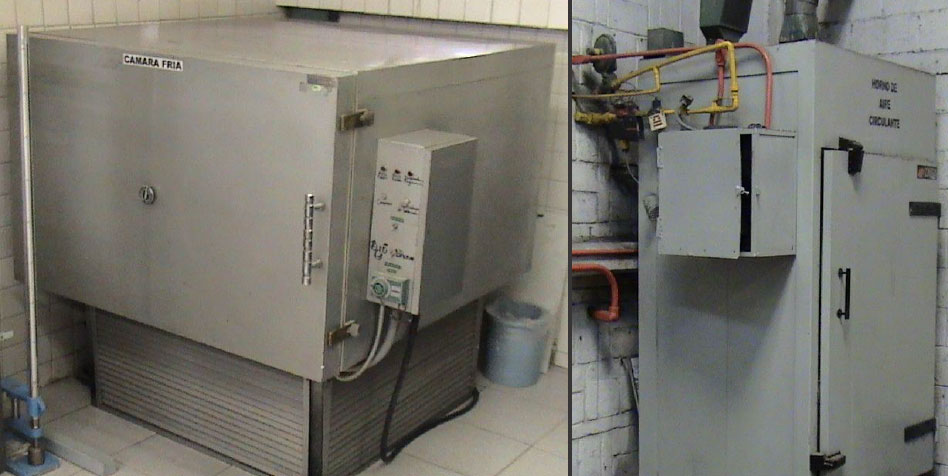

There are carried out thermic cycle tests by means of a cold chamber able to diminish and maintain the temperature below 35°C and an oven with circulating air which keeps the temperature above 200°C.
